Saving Default Properties in CabMaster

Saving Default Properties in CabMaster


Configuring default settings can make drawings a breeze
Saving default properties is different depending on the Cabmaster version
Click Here for help on the Designer Lock, 3D or CL versions

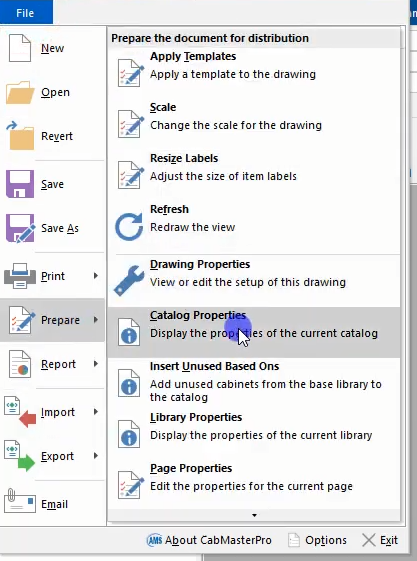

1. Click on File > Prepare > Catalog Properties

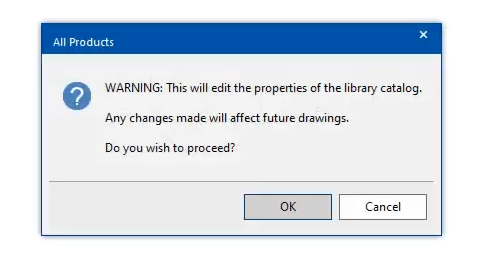

2. A warning pop up is displayed advising this will change the default for future drawings. Click OK if you wish to proceed.

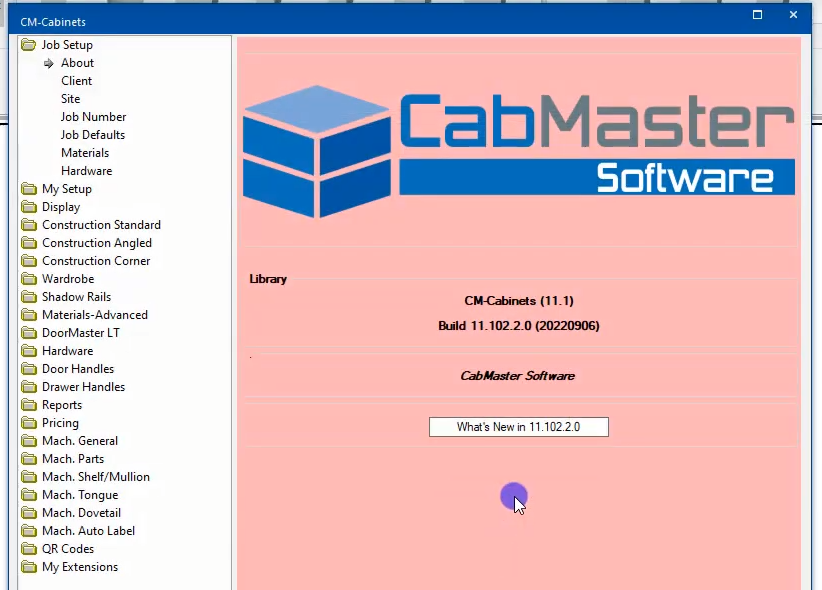

3. A new window opens where you can select and change the default properties.
Note: the Salmon color indicates that you are modifying the dealt properties
Click Here for help on the Pro or Premium version

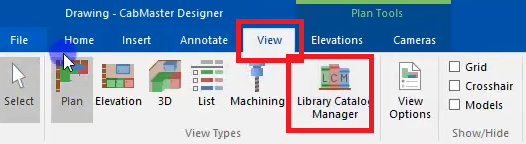

1. Click on the View tab, then the Library Catalog Manager icon on the top left hand side of the ribbon

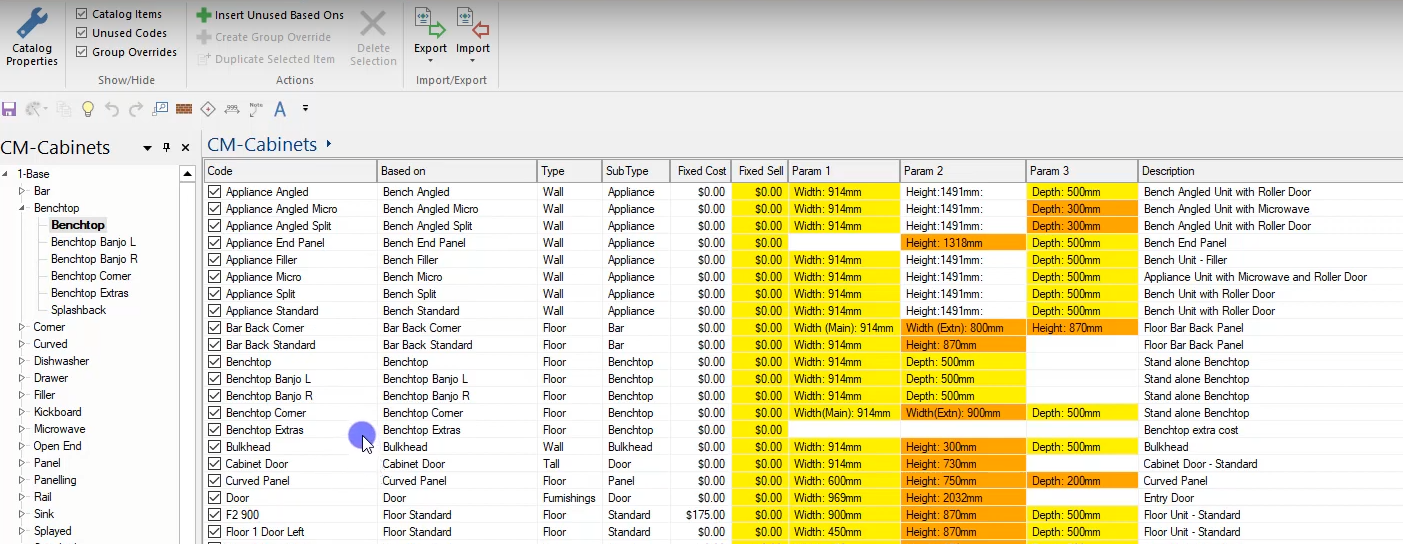

Here you can modify and edit cabinet settings

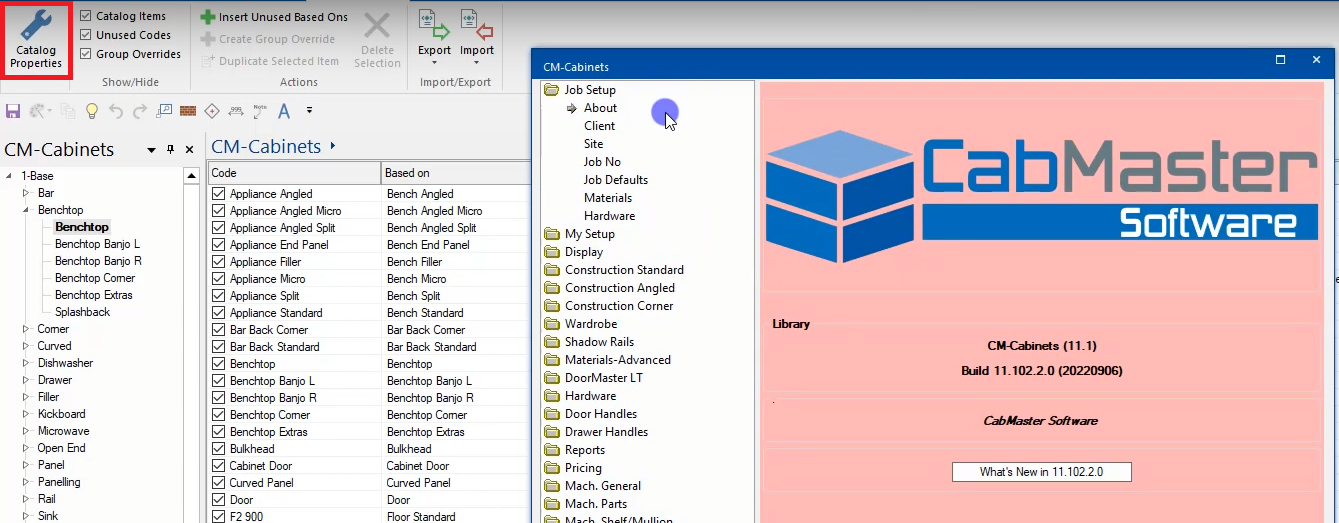

2. Click on the Catalog Properties icon in the ribbon to update and save your defaults.
Note: the Salmon color indicates that you are modifying the dealt properties
Click Here to expand and watch the Saving Default Properties in CabMaster walkthrough video
This video is a walkthrough on how to Save Default Properties in CabMaster. This video will go through all versions.
